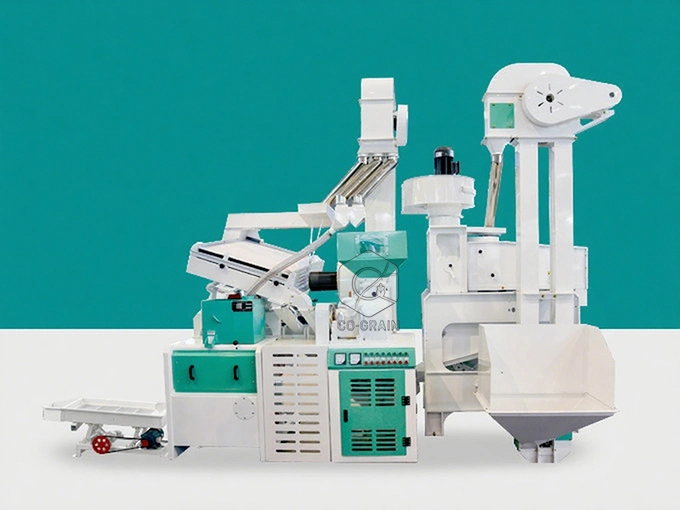

Our 25T/D standard rice mill plant is our advance designed rice mill machine. It is suitable for small-scale rice processing businesses, which can process about 1300-1500kg paddy and get about 1100-1350kg white rice. The main machines of this rice mill machinery are combined cleaner, paddy huller, paddy separator, rice mill machine, etc.
Our 25T/D standard rice mill plant is our advance designed modern rice mill machine. It is suitable for small-scale rice processing businesses, which can process about 1300-1500kg of paddy and get about 1100-1350kg of white rice. The main machines of this rice mill machinery are combined cleaner, paddy huller, paddy separator, rice mill machine, etc.
With our modern technical skills, the cleaner machine is combined with a rice pre-cleaner and rice destoner function as a whole, to clean the paddy and then remove the inside stones. Then cooperate work with the rice hulling machine, paddy rice separator, and rice mill machine. The rice polishing machine, rice grading machine, rice color sorter machine, the rice packing machine can be added according to clients’ needs.
What is 25T/D Standard Rice Mill Plant Working Process?

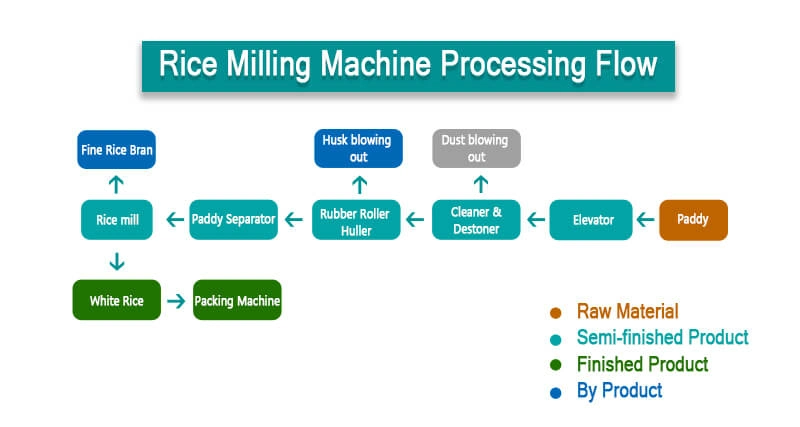

The 25T/D standard rice mill plant can process paddy into national standard rice just in one process at the following flow chart: Raw material feeding-Vibrated cleaner & Destoner → Rice Husker→Paddy Rice Separator → Rice Mill → Standard White Rice, Then the rice can be on market for sale.

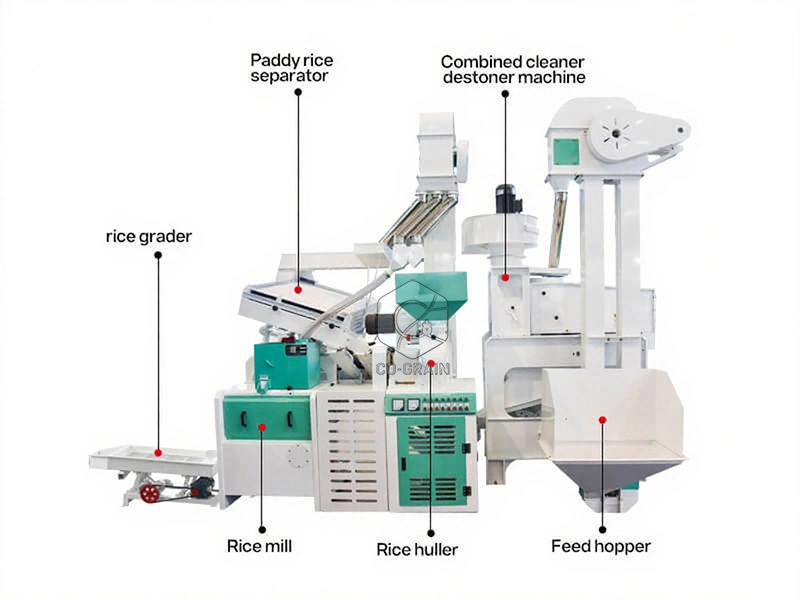

What Is The Structure of the 25T/D Standard Rice Mill Plant?

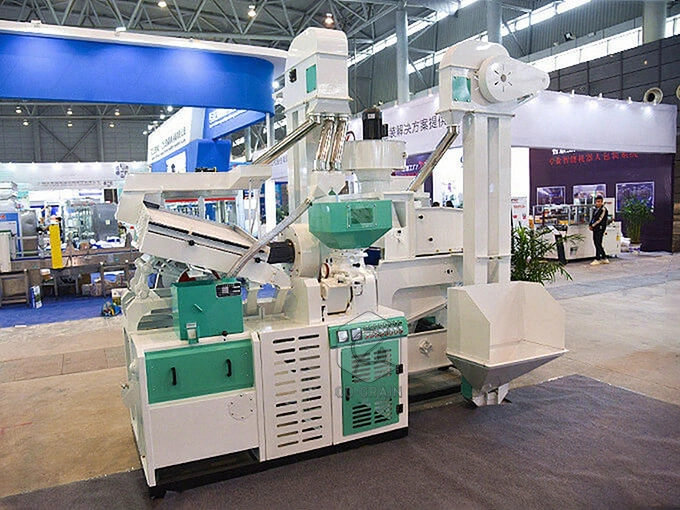

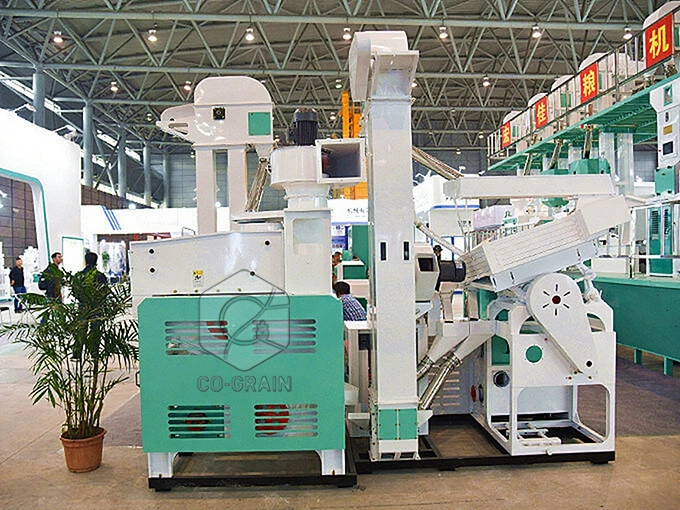

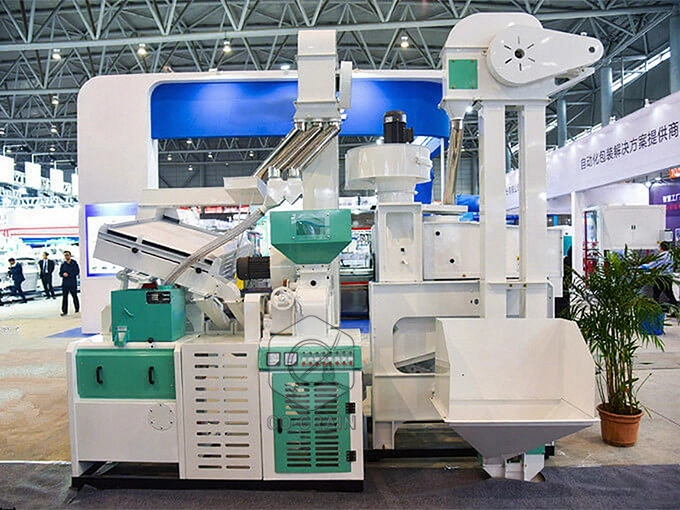

This 25T/D modern rice milling machine is a standard automatic rice production line, which includes the main process of paddy cleaning, stone removal, rice separating, rice hulling, rice milling, etc. With one set of rice mill machines, you can get the standard rice. Therefore, this type of rice milling equipment is very popular. Welcome, contact us for the details.
Combined Paddy Cleaner: removing all impurities and unfilled grains from the paddy;
Rice Hulling Machine: a rice huller or paddy husker is an agricultural machine used to automate the process of removing the chaff (the outer husks) of grains of rice.
Paddy Separator: it is mainly used for separating brown rice from paddy making use of their differences in specific gravity and friction coefficient in three parts: paddy, brown rice, and a mix of both.
Rice Milling Machine: the rice whitening machine is developed for rice whitening, which is an advanced technology of the world rice mill whitener at present to make rice temperature down, bran content less, and broken increment lower.
Broken Rice Sieve: to separate the good rice and the broken rice.
No.
Name
Model
Power(kW)
1
Single Elevator
TDTG18/08
0.75
2
Combined Cleaner and Destoner Machine
ZQS50A
1.1
3
Centrifugal Fan
4-72
2.2
4
Double Elevator
TDTG18/08*2
0.75
5
Rice Huller
LG15A
4
6
Centrifugal Fan
4-72
1.1
7
Paddy Rice Separator
MGCZ70*5A
0.75
8
Strong pull wind emery roller rice mill
NS150
15
9
Broken rice sieve
0.37
Optional items:
Rice Polishing Machine: rice polishing machine, polishes the rice surface by spraying water, which facilities the formation of a smooth gelatinous layer that prolongs the preservation time. Extended polishing chamber to produce high-quality rice
Rice Color Sorter: the rice color sorting machine is used to sort bad, milky, Chalky, Paddy, and foreign materials. The CCD signal while blanking is been tested. If it is found that there are unqualified rice or impurities in the materials, the ejector will blow the defective goods in the hopper.
Rice Grading Machine: the rice grader can sieve milled rice efficiently and accurately into several classes: head rice, large broken, medium broken, small broken, etc.
Rice Packing Machine: rice weighing and bagging: preparing milled rice for transport to the customer.
Product Details of The 25T/D Rice Mill Plant

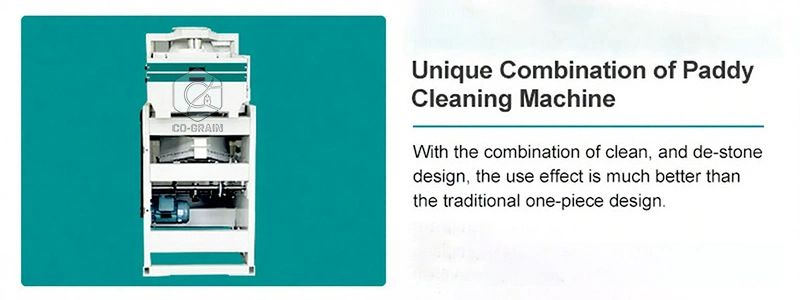

1.Unique Combination of Paddy Cleaning Machine
With the combination of clean, and de-stone design, the use effect is much better than the traditional one-piece design. Large air volume design, excellent stone removal effect, combined with high-strength vibration-absorbing bearing configuration, the body movement is stable, firm, and reliable, low vibration, low noise, less dust;
The stone removal part adopts the design of large air volume and suction, with large air volume and good stone removal effect;

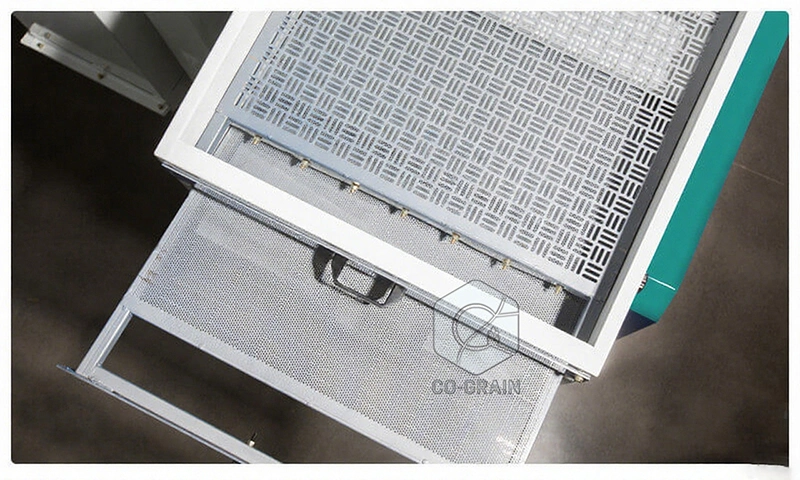

The cleaning part adopts a multi-layer drum screen mechanism, which has high cleaning efficiency and clean-up, so it can remove fine impurities and stones;
A square rotation screen for the destoner machine will make the paddy cleaner;

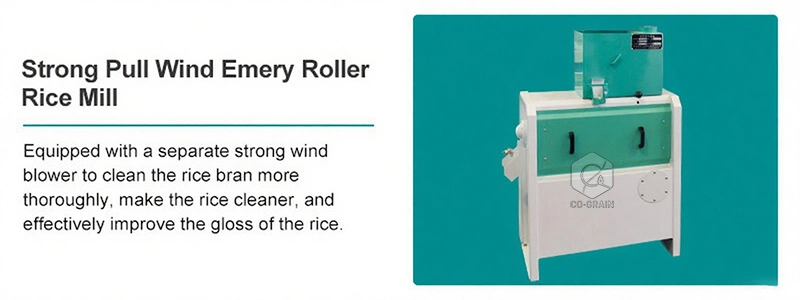

Equipped with a separate strong wind blower to clean the rice bran more thoroughly, make the rice cleaner, and effectively improve the gloss of the rice.
Lower the temperature of the rice, thereby effectively reducing the rate of broken rice
The operation height is reduced, the operation is more convenient, and the daily maintenance is convenient.

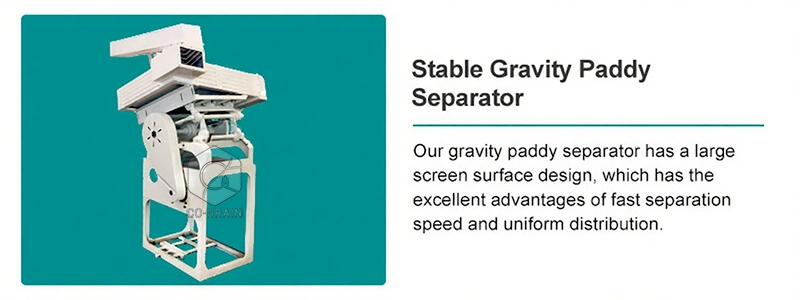

3. Stable Gravity Paddy Separator
Our gravity paddy separator has a large screen surface design, which has the excellent advantages of fast separation speed and uniform distribution;
The horizontal and vertical angles of the screen surface can be adjusted, so it is suitable for different types of rice;

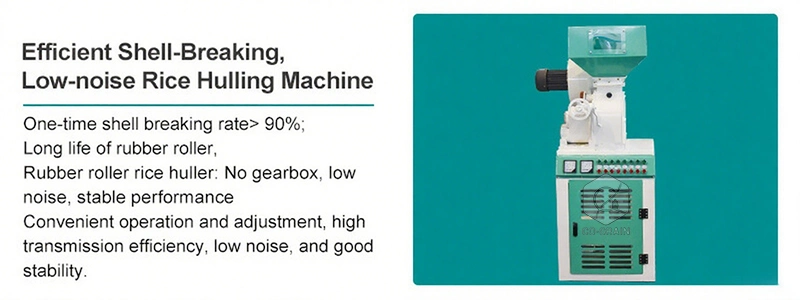

Long life of rubber roller, Rubber roller rice huller: No gearbox, low noise, stable performance;
Convenient operation and adjustment, high transmission efficiency, low noise, and good stability;

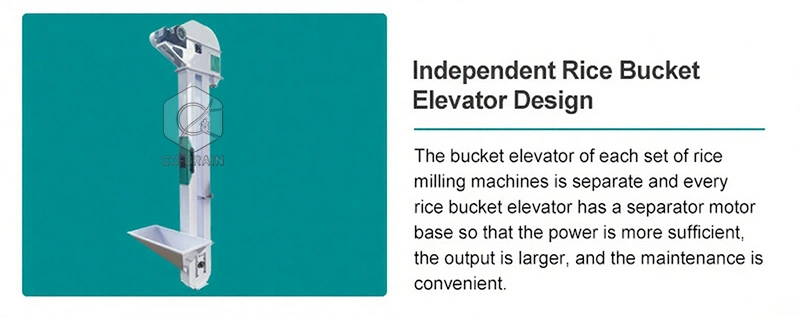

5. Independent Rice Bucket Elevator Design
The bucket elevator of each set of rice milling machines is separate and every rice bucket elevator has a separator motor base so that the power is more sufficient, the output is larger, and the maintenance is convenient.
25T/D Standard Rice Mill Plant Advantages
1. Rice milling speed is fast, the complete set of equipment has a daily output of about 25 tons.
2. The structure is neat and beautiful, and the energy consumption is low. The operation and maintenance are convenient, and the disassembly and assembly of all equipment are very convenient.
3. The rice milling part of the equipment adopts negative pressure rice milling technology, which has low rice temperature, no chaff, and fewer broken rice rate.
5. According to the requirement of the crafting flow, “one” arrangement, the main operations are concentrated in the middle, convenient to operate.
6. High-strength vibration-absorbing bearing configuration, the machine body moves smoothly, is firm and reliable, and has low vibration, low noise, and low dust.
7. Better cleaning effect, can remove the impurities among the grains like stone, iron, dust, stalks and etc.
