20T/D Complete Rice Mill

  • Capacity: 20 T/D
  • Power: 50kw
  • Dimension: 16000*6000*4500 mm
  • Include Machine: rice cleaner, rice huller, rice separator, rice mill, rice polisher, rice grader, rice color sorter, rice packing machine, etc

This 20T/D complete rice mill project can process about 1100-1300kg paddy and get about 800-1000kg white rice per hour. It can process paddy rice into national standard white rice just in one process. Our such rice mill machine contains all the machines need to process paddy into rice, such as combined rice cleaning machine, rice hulling machine, rice separating machine, rice mill machine, rice elevator, rice polishing machine, rice grading machine, rice sorting machine, and rice packing machine, etc.

What is 20T/D Complete Rice Mill Plant?

This 20T/D complete rice mill project is our newly designed small-scale complete rice mill plant, which can process about 1100-1300kg paddy and get about 800-1000kg white rice per hour. It can process paddy rice into national standard white rice just in one process.

Our rice mill machine contains all the machines need to process paddy into rice, such as a combined rice cleaning machine, rice hulling machine, rice separating machine, rice mill machine, rice elevator, rice polishing machine, rice grading machine, rice sorting machine, and rice packing machine, etc.

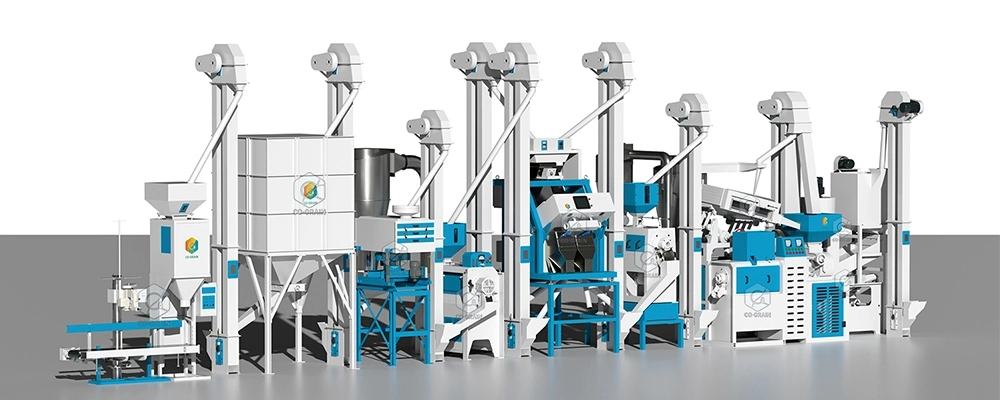

20ton_complete_mill_projects (3)

The 20T/D rice processing machine can be designed and customized to your special requirement. Its paddy separation effect is very good, high working efficiency, and small size can be easily set in any place or station, or farm according to the user's needs. Easy to operate and maintain, with less broken rate. So it’s the most ideal rice mill machine for urban, rural, small, and medium-sized rice processing plants.

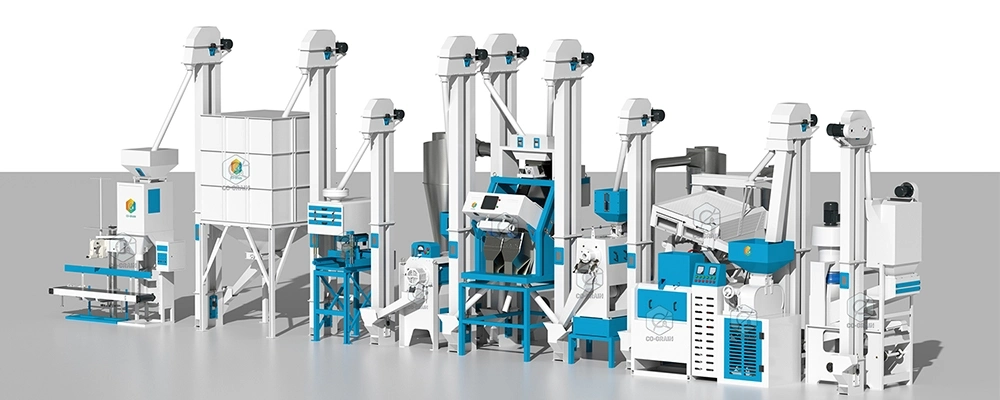

20ton_complete_mill_projects (4)
Make a Quick Inquiry Now !

What is the 20T/D Complete Rice Mill Plant Working Process?

The 20T/D combined rice mill can process paddy into national standard rice just in one process at the following flow chart: Raw material feeding-Vibrated cleaner & Destoner → Rice Husker→Paddy Rice Separator → Rice Mill →Rice Polisher → Rice Grader→ Rice Color Sorter → Packing, Then the rice can be on market for sale.

20t complete rice mill project cost
Make a Quick Inquiry Now !

What Is The Structure of the 20T/D Complete Rice Mill Plant?

Our 20T/D combined rice mill machine is a fully automatic rice mill project, which includes the entire process from paddy cleaning, stone removal, rice hulling, rice separating, rice milling, rice polishing, and rice color sorting, rice grading, and final rice packaging. You no longer need any other machines, you can realize the entire processing from paddy rice to the final finished white rice. Therefore, this complete set of rice milling equipment is very popular. Welcome, contact us for the details.

20t complete rice mill project supplier
Make a Quick Inquiry Now !

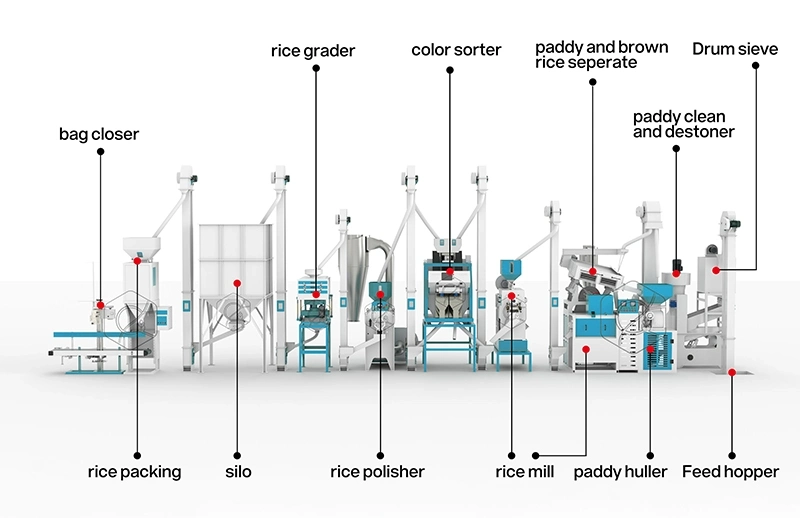

The Modern Rice Milling System Consists of:

Hopper: feeding raw paddy material to the rice mill machine

Combined paddy cleaner & de-stoner: other light impurities such as dust and debris, block, the stone should be removed as much as possible to reach a better cleaning effect.

Rice husker: remove husk from paddy.

Rice separator: it is mainly used for separating brown rice from paddy making use of their differences in specific gravity and friction coefficient in three parts: paddy, brown rice, and a mix of both.

Rice mill machine: the rice whitening machine is developed for rice whitening, which is an advanced technology of the world rice mill whitener at present to make rice temperature down, bran content less, and broken increment lower.

Rice polisher: polishes the rice surface by spraying water, which facilities the formation of a smooth gelatinous layer that prolongs the preservation time. Extended polishing chamber to produce high-quality rice.

Rice grading machine: the rice grader can sieve milled rice efficiently and accurately into several classes: head rice, large broken, medium broken, small broken, etc.

Rice color sorter: the rice color sorting machine is used to sort bad, milky, Chalky, Paddy, and foreign materials. The CCD signal while blanking is been tested. If it is found that there are unqualified rice or impurities in the materials, the ejector will blow the defective goods in the hopper.

Rice packing machine: this rationed automatic weighing packing machine consists of a material box, a packing scale, a sewing machine, and a conveyor belt. It can cooperate work with all the model's rice mill production lines, and also for the packing bag capacity can choose 1-50kg per bag for your needs.

1Single elevator 3mTDTG18/080.75
2Drum pre-clean machineSCQY400.55
3Paddy clean and destoner machineZQS50A1.1
5Double elevatorTDTG18/08*20.75
66inches rubber rollerLG-15A4
7Paddy and rice separate machineMGCZ70*5A0.75
8Sand roller rice mill machineNS15015
9Single elevatorTDTG18/080.75
10Iron roller rice mill machineMT12815
11Single elevatorTDTG18/080.75
12Water polisher12.522
13Single elevatorTDTG18/080.75
14Rice grader machineMMJP50*21.1
15Single elevatorTDTG18/080.75
16Color sorterCCD-641.1+
17Single elevatorTDTG18/080.75
18Rice packing machineDCS-50A0.75

Product Details of The 20T/D Rice Mill Plant

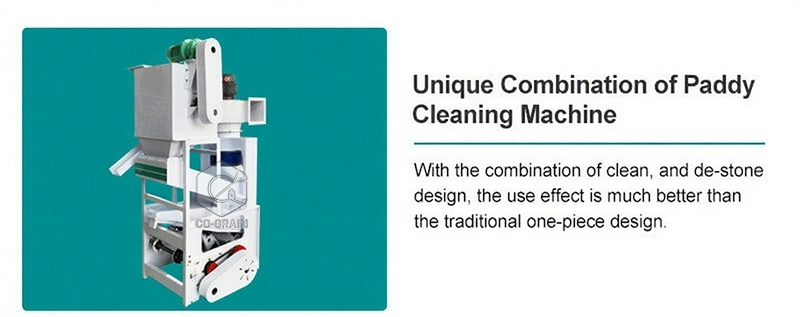

1. Unique Combination of Paddy Cleaning Machine

With the combination of clean, and de-stone design, the use effect is much better than the traditional one-piece design. Large air volume design, excellent stone removal effect, combined with high-strength vibration-absorbing bearing configuration, the body movement is stable, firm, and reliable, low vibration, low noise, less dust;

The stone removal part adopts the design of large air volume and suction, with large air volume and good stone removal effect;

The cleaning part adopts a multi-layer drum screen mechanism, which has high cleaning efficiency and clean-up, so it can remove fine impurities and stones;

A square rotation screen for the destoner machine will make the paddy cleaner;

20t complete rice mill projects

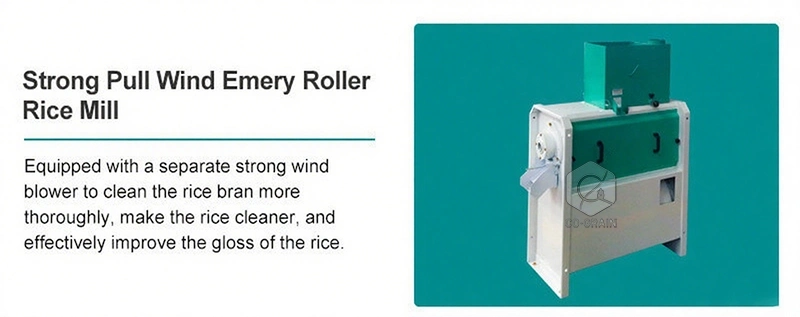

2. Strong Pull Wind Emery Roller Rice Mill

Equipped with a separate strong wind blower to clean the rice bran more thoroughly, make the rice cleaner, and effectively improve the gloss of the rice;

Lower the temperature of the rice, thereby effectively reducing the rate of broken rice;

The operation height is reduced, the operation is more convenient, and the daily maintenance is convenient;

20t complete rice mill projects (2)
Make a Quick Inquiry Now !

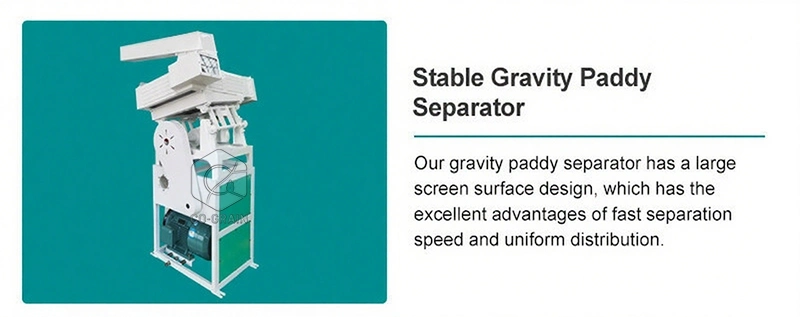

3. Stable Gravity Paddy Separator

Our gravity paddy separator has a large screen surface design, which has the excellent advantages of fast separation speed and uniform distribution;

The horizontal and vertical angles of the screen surface can be adjusted, so it is suitable for different types of rice;

Low broken rice rate;

20t complete rice mill projects cost

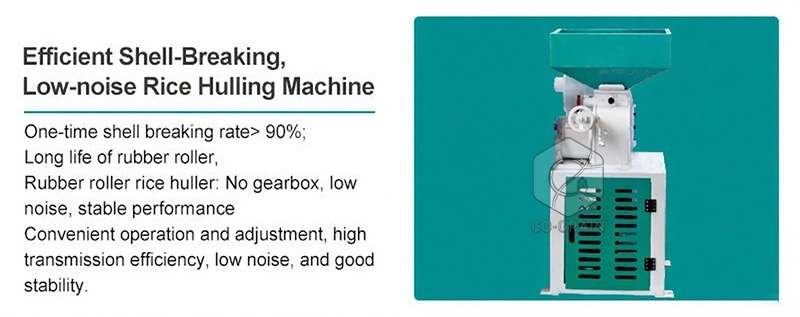

4. Efficient Shell-Breaking, Low-noise Rice Hulling Machine

One-time shell breaking rate> 90%;

Long life of rubber roller, Rubber roller rice huller: No gearbox, low noise, stable performance;

Convenient operation and adjustment, high transmission efficiency, low noise, and good stability;

20t complete rice mill projects price

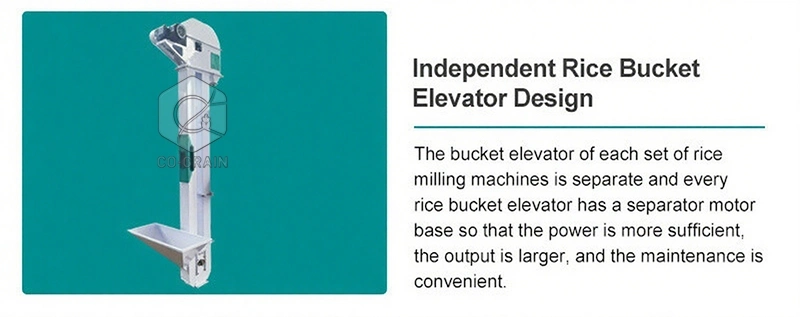

5. Independent Rice Bucket Elevator Design

The bucket elevator of each set of rice milling machines is separate and every rice bucket elevator has a separator motor base so that the power is more sufficient, the output is larger, and the maintenance is convenient.

20T/D Rice Mill Plant Advantages

1. Twice rice mill machine has lower pressure in the polishing chamber, lower break rice rate;

2. Water polishers, color sorters, and rice graders' other systems will bring you high-precision rice;

3. It is the ideal machine for milling various rice, such as long-shaped rice, polished round-grained rice, sticky rice, Thailand jasmine rice, basmati rice, etc; also can press parboiled paddy;

4. Having a high automation degree and realizing continuous automatic operation from paddy feeding to finished rice packing;

5. Rice milling speed is fast, the complete set of equipment has a daily output of about 20 tons;

6. The structure is neat and beautiful, and the energy consumption is low. The operation and maintenance are convenient, and the disassembly and assembly of all equipment are very convenient;

7. The rice milling part of the equipment adopts negative pressure rice milling technology, which has low rice temperature, no chaff, and fewer broken rice rate;

8. Our processing technology: Optical fiber cutting, CNC bending, CNC machine tools, spraying process, high-position spray baking, etc;

9. According to the requirement of the crafting flow, “one” arrangement, the main operations are concentrated in the middle, convenient to operate;

10. High-strength vibration-absorbing bearing configuration, the machine body moves smoothly, is firm and reliable, has low vibration, low noise, and low dust;


We not only provide a good product, but also provide high quality service. If you are interested in our products, you can contact us in the following ways.
