This 15T/D complete rice mill plant is a small auto rice mill machine, which includes paddy pre-cleaning, paddy de-stoning, paddy husking, paddy brown rice separating, rice milling, rice grading, rice polishing, rice color sorting, and rice scaling&bagging sections. It is fully automatic, with a reasonable structure design, stable performance, and high working efficiency. This auto rice mill can get 600-900kg white rice per hour and is widely used in small farms and medium-size rice milling factories.
This 15T/D complete rice mill plant is a small auto rice mill machine, which includes paddy pre-cleaning, paddy de-stoning, paddy husking, paddy brown rice separating, rice milling, rice grading, rice polishing, rice color sorting, and rice scaling&bagging sections. It is fully automatic, with a reasonable structure design, stable performance, and high working efficiency. This auto rice mill can get 600-900kg of white rice per hour and is widely used in small farms and medium-sized rice milling factories.
Clients can choose with or without a rice polisher, rice grader, color, and automatic scaling&bagging machine according to their budget for the rice mill plant. Please inform us of your detailed requirements. Then we can give you advice. All the rice mill plants can be customized according to your need.
The rice milling plant is mainly used to process raw paddy into product rice. Our 15 tons per day rice milling plant is a modern type of rice processing equipment. It is improved based on a single rice mill machine. It is suitable for small farms, towns, schools, grain shops, and rice milling factories.
What is the 15T/D Complete Rice Mill Plant Working Process?
The 15T/D complete rice mill plant can process paddy into national standard rice just in one process at the following flow chart: Raw material feeding-Vibrated cleaner & Destoner → Rice Husker→Paddy Rice Separator → Rice Mill →Rice Polisher → Rice Grader→ Rice Color Sorter → Packing, Then the rice can be on market for sale.

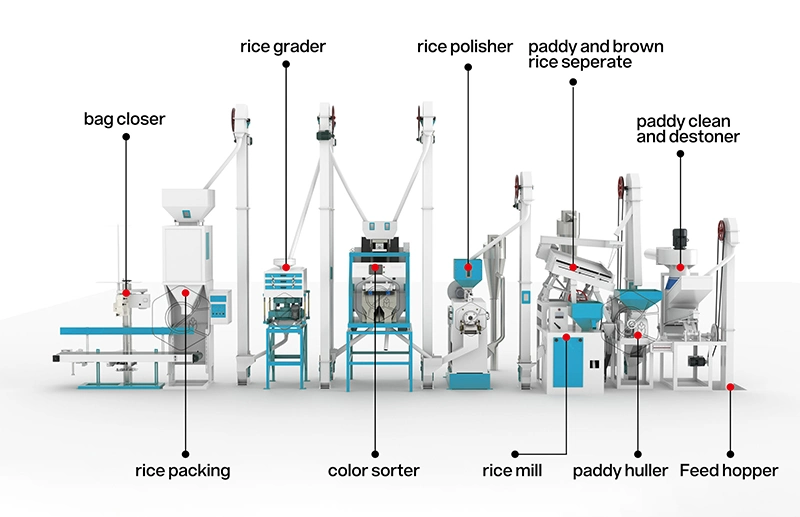

What Is The Structure of the 15T/D Complete Rice Mill Plant?
Our 15T/D complete rice mill plant is a fully automatic rice production line, which includes the entire process from paddy cleaning, stone removal, rice hulling, rice separating, rice milling, rice polishing, and rice color sorting, rice grading, and final rice packaging. You no longer need any other machines, you can realize the entire processing from paddy rice to the final finished white rice. Therefore, this complete set of rice milling equipment is very popular. Welcome, contact us for the details.
Hopper: feeding raw paddy material to the rice mill machine;
Combined paddy cleaner & de-stoner: other light impurities such as dust and debris, block, the stone should be removed as much as possible to reach a better cleaning effect;
Rice husker: remove husk from paddy;
Rice separator: it is mainly used for separating brown rice from paddy making use of their differences in specific gravity and friction coefficient in three parts: paddy, brown rice, and a mix of both;
Rice mill machine: the rice whitening machine is developed for rice whitening, which is an advanced technology of the world rice mill whitener at present to make rice temperature down, bran content less, and broken increment lower;
Rice polisher: polishes the rice surface by spraying water, which facilities the formation of a smooth gelatinous layer that prolongs the preservation time. Extended polishing chamber to produce high-quality rice;
Rice grading machine: the rice grader can sieve milled rice efficiently and accurately into several classes: head rice, large broken, medium broken, small broken, etc;
Rice color sorter: the rice color sorting machine is used to sort bad, milky, Chalky, Paddy, and foreign materials. The CCD signal while blanking is been tested. If it is found that there are unqualified rice or impurities in the materials, the ejector will blow the defective goods in the hopper;
Rice packing machine: this rationed automatic weighing packing machine consists of a material box, a packing scale, a sewing machine, and a conveyor belt. It can cooperate work with all the model's rice mill production lines, and also for the packing bags capacity can choose 1-50kg per bag for your needs;
No.
Name
Quantity
1
Combined Cleaner and Destoner Machine
1
2
Rice Huller
1
3
Paddy Rice Separator
1
4
Strong pull wind emery roller rice mill
1
5
Rice polisher
1
6
Rice Grader
1
7
Rice color sorter
1
8
Packing machine
1
9
Rice Bucket Elevator
8
10
Control Cabinet
1
Product Details of The 15T/D Rice Mill Plant:
Unique Combination of Paddy Cleaning Machine
With the combination of clean, and de-stone design, the use effect is much better than the traditional one-piece design. Large air volume design, excellent stone removal effect, combined with high-strength vibration-absorbing bearing configuration, the body movement is stable, firm, and reliable, low vibration, low noise, less dust;
The stone removal part adopts the design of large air volume and suction, with large air volume and good stone removal effect;
The cleaning part adopts a multi-layer drum screen mechanism, which has high cleaning efficiency and clean-up, so it can remove fine impurities and stones;
A square rotation screen for the destoner machine will make the paddy cleaner;
Equipped with a separate strong wind blower to clean the rice bran more thoroughly, make the rice cleaner, and effectively improve the gloss of the rice;
Lower the temperature of the rice, thereby effectively reducing the rate of broken rice;
The operation height is reduced, the operation is more convenient, and the daily maintenance is convenient;
Stable Gravity Paddy Separator
Our gravity paddy separator has a large screen surface design, which has the excellent advantages of fast separation speed and uniform distribution;
The horizontal and vertical angles of the screen surface can be adjusted, so it is suitable for different types of rice;
Long life of rubber roller, Rubber roller rice huller: No gearbox, low noise, stable performance;
Convenient operation and adjustment, high transmission efficiency, low noise, and good stability;
Independent Rice Bucket Elevator Design
The bucket elevator of each set of rice milling machines is separate and every rice bucket elevator has a separator motor base so that the power is more sufficient, the output is larger, and the maintenance is convenient.
15T/D Rice Mill Plant Advantages
1. Twice rice mill machine has lower pressure in the polishing chamber, lower break rice rate;
2. Water polishers, color sorters, and rice graders' other systems will bring you high-precision rice;
3. It is the ideal machine for milling various rice, such as long-shaped rice, polished round-grained rice, sticky rice, Thailand jasmine rice, basmati rice, etc; also can press parboiled paddy;
4. Having a high automation degree and realizing continuous automatic operation from paddy feeding to finished rice packing;
5. Rice milling speed is fast, the complete set of equipment has a daily output of about 15 tons;
6. The structure is neat and beautiful, and the energy consumption is low. The operation and maintenance are convenient, and the disassembly and assembly of all equipment are very convenient;
7. This full automatic rice milling plant can process paddy into national standard product rice in one process continuously. The rice mill capacity can be customized according to your special requirements. So the complete rice mill plant is ideal paddy processing equipment;
8. Automatic rice mill plant is compact and reasonable structure design. The installation can be based on a steel-framed operation platform or concrete base according to customers’ requirements;
9. Some following-up machines are optional. We can match it according to your budget for the rice mill;
10. We are a manufacturer of rice milling machines. You can get the best machines at a very good price from us;
